STRAPPING SYSTEMS

Need strap? Click here


Fully Automatic Strapping Systems


    702B (Belted)

    Strap Width 5 mm, 6 mm, 9 mm or 12 mm
    Strap Tension 1-32 kg (for 5 mm, 6 mm, and 9 mm)
    1-45 kg (for 12 mm)
    Speed Up to 40 packages per minute
    (Cycle speed up to 65 straps per minute)
    Net Weight 225 kg
    Electrical Requirements 110V, 220V, 230V 50/60Hz 1PH
    220V, 380V, 400V 50/60Hz 3PH


702BP (Belted Pressing unit)

Strap Width 5 mm, 6 mm, 9 mm or 12 mm
Strap Tension 1-32 kg (for 5 mm, 6 mm, and 9 mm)
1-45 kg (for 12mm)
Speed Up to 36 packages per minute
(Cycle speed up to 65 straps per minute)
Net Weight 250 kg
Pneumatic Source 6 bar
Air Consumption 7.5 liter/cycle
Electrical Requirements 110V, 220V, 230V 50/60Hz 1PH
220V, 380V, 400V 50/60Hz 3PH

Semi-Automatic Strapping Systems





    TDI 206

    STRAP WIDTH 5-15 mm
    SPEED 2.5 SEC/Strap
    POWER SUPPLY 100, 110, 220, 230, 240V., 50/60HZ., 1-Phase
    POWER CONSUMPTION 0.4KW
    MACHINE TENSION 5-55KGS
    MACHINE DIMENSION 895mm(L) x 565mm(W) x 740mm (H)
    MACHINE WEIGHT 100 KGS





Automatic Strapping Systems



    Eagle 710

    710L

    Automatic Strapping Machine

    Robust & Compact Mechanical Strapping Head

    The 710L uses the latest DC brush less motor technology to provide the highest level of accuracy and reliability on the market. All motors are German made. The strapping head has no belts, clutches or pulleys. It is straightforward technology with few moving parts. Therefore, with 30% fewer parts, the Eagle 710L requires fewer adjustments, has fewer wearable components, and requires less maintenance. The design of the 710L simplifies all operations and is thereby extremely cost effective.

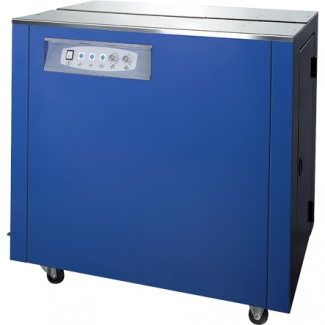

    TDI 305TDI 305

    STRAP WIDTH 5-15 mm
    SPEED 2.5 SEC/Strap
    POWER SUPPLY 100, 110, 220, 230, 240V., 50/60HZ., 1-Phase
    POWER CONSUMPTION 0.2KW
    MACHINE TENSION 2-55KGS
    MACHINE DIMENSION 780mm(L) x 550mm(W) x 750mm (H)
    MACHINE WEIGHT 63 KGS











    EXS 205

    TDI 205

    STRAP WIDTH 5-15 mm
    SPEED 2.5 SEC/Strap
    POWER SUPPLY 100, 110, 220, 230, 240V., 50/60HZ., 1-Phase
    POWER CONSUMPTION 0.2KW
    MACHINE TENSION 2-55KGS
    MACHINE DIMENSION 780mm(L) x 550mm(W) x 750mm (H)
    MACHINE WEIGHT 63 KGS




EXS 107 Parts Book

EXS 108 Parts Book

EXS 306 Parts Book

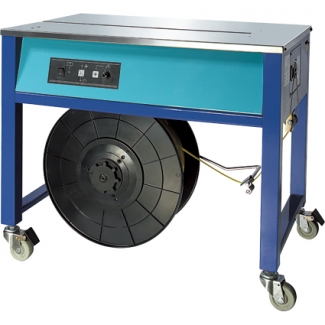

EXS 206 Parts Book
