    330 Ink Jet Base

  • DBC 205
  • DBC 2010
  • RVC 209
  • SYSTEMS
  • VMC 209
  • RSC 2010
  • 330 DRYER BASE
  • FIT 36

VMC 209 Transport / Plow

Features:

  • Split chamber 36" vacuum tubes (wide and narrow)
  • Urethane coated belts
  • DC Follower drive
  • Height adjustable
  • Bed tilt
  • Plows/Tipper Plates
  • Divert options
  • Anodized Frames

VIDEO on the transport





    EXS 118

    Fit 36 Ink Jet Base

    530 Ink Jet Base

    (shown with options)

  • An 79" transport length comfortably accommodates 8 inches of MCS inkjet
  • The segmented dryer section includes a heat reflective top and heat
  • resistant belts.
  • The vacuum system provides independent fan modules along the entire base.
  • This enables excellent piece hold-down when high speeds and powerful dryers are required.
  • Vacuum stays effective — even when there are only a few pieces on the transport.
  • The 530 can be provided with a removable feeder section — so that a friction feeder can be easily added or removed, depending on integration with other equipment such as inserters or folders.
  • Transport clearance width for mail pieces 20"
  • Independent rollers for belt adjustment
  • 115V plug for flexibility in the shop
  • Designed to be moved around easily including inserters and bindery equipment



RSC 2010 Score / Plow Fold / Ink Jet

Video: Score / Plow Fold / Attaching

Register - then score, perf and slit on the tandem shaft precision scoring module, divert non-compliant product - glue, apply product, plow fold, flipper plate fold and more...

Features:

  • Parallel infeed and exit register rollers
  • Built in QC diverter
  • Handwheels for precise set-ups
  • Stainless register rollers
  • 2 VMC Sections
  • Express lift up to 6"
  • Ultra quiet operation
  • Easy access scoring/slitting/perfing module
  • Precise OP controls
  • 1/2" Anodized aluminum frames
  • Speed following option

More Info on RSC 2010





RSC2013 Score/plow fold/inkjet

Register - then score, perf and slit on the tandem shaft precision scoring module, divert non-compliant product - glue, apply product, plow fold, flipper plate fold and more...

Features:

  • Parallel infeed and exit register rollers
  • Built in QC diverter
  • Handwheels for precise set-ups
  • Stainless register rollers
  • 3 VMC Sections
  • Express lift up to 6"
  • Ultra quiet operation
  • Easy access scoring/slitting/perfing module
  • Precise OP controls
  • 1/2" Anodized aluminum frames
  • Speed following option

Video RSC 3013 Score/Plow Fold 3' long piece



DBC205 Dryer Base/Conveyor

Features:

  • 5' Dryer Base Conveyor
  • No flanged pulleys
  • Built in scales
  • Cool air cowling
  • HD bearings throughout



DBC 2010 Dryer Base /Conveyor

Features:

  • 10' Dryer Base Conveyor
  • No flanged pulleys
  • Built in scales
  • Cool air cowling
  • HD bearings throughout





VPT 205

VMC1436 Ink Jet Transport

The VMC vacuum conveyor line features many models and options to assist in your product transfer/converting needs:

Features:

  • Split chamber 36" vacuum tubes (wide and narrow)
  • Urethane coated belts
  • DC Follower drive
  • Height adjustable
  • Bed tilt
  • Plows/Tipper Plates
  • Divert options
  • Anodized Frames

Watch Video





RTS 205 Scoring/Slitting Unit

Register - then score, perf and slit on the tandem shaft precision scoring module.:

Features:

  • Parallel infeed and exit register rollers
  • Built in QC diverter
  • Handwheel for precise set-ups
  • Stainless register rollers
  • Lift up to 5"
  • Tilt +/- 10 degrees from horizontal
  • Scoring/slitting/perfing module
  • Absolute precision OP controls
  • 1/2" Anodized aluminum frames
  • Speed following





VBC 205PID

Information coming soon!



RFE 170

Capture/Placement Device



This unit will quickly and precisely flip over flat products traveling down a conveyor system-will match tail edge of product to lead edge of the sequencial product. Can be programmed for multiple functions, batching and sheet sequencing. (Touchscreen interface options available)

Features:

  • Eliminates the need for hand flipping
  • Auto-adjusting
  • Speed following
  • Start and stop inhibit I/O interface
  • Anodized Frames

Watch Video



UD 141

Information coming soon!







RSE 155

Capture/Placement Device



Unit automatically turns every other single product/set precisely 180 degrees then ejects FAST! - Handles flat products with or without glued or tipped-on products - This is an "add-on" to existing conveyor that adds versatility and eliminates need for temp help.





Watch Video

VMC 206

The VMC conveyor line features many models and options to assist in your product transfer/converting needs:

Features:

  • Split chamber 36" vacuum tubes (wide and narrow)
  • Urethane coated belts
  • DC Follower drive
  • Height adjustable
  • Bed tilt
  • Plows/Tipper Plates
  • Divert options
  • Anodized Frames

Technical Specs

Watch Video

FTP 181

Converting Device



Automatic in-line flap flipping device - Folds scored product to lateral scores (Controlled by existing glue system or optional controller)







Watch Video

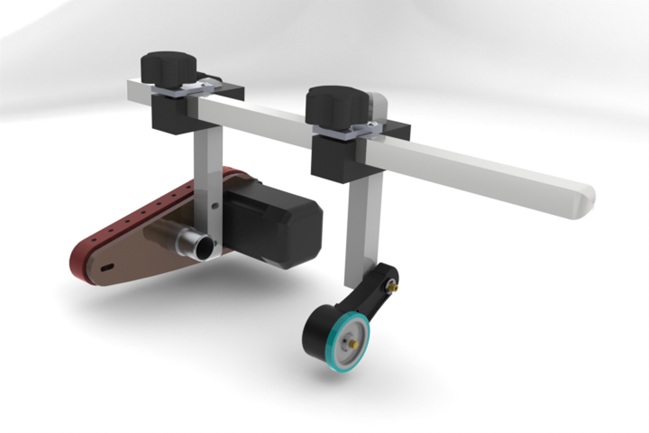

Plow Opening Device

We can install anywhere on VMC unit(s).

Opening station is servo driven - so matches deck fwd or backward exact whether using handwheel or under power

Download Brochure

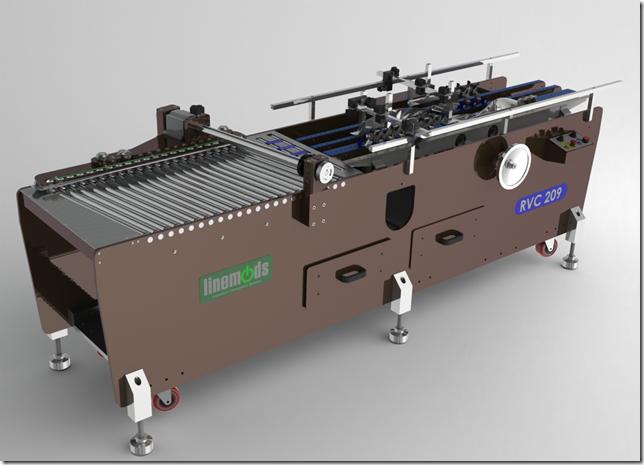

RVC 209

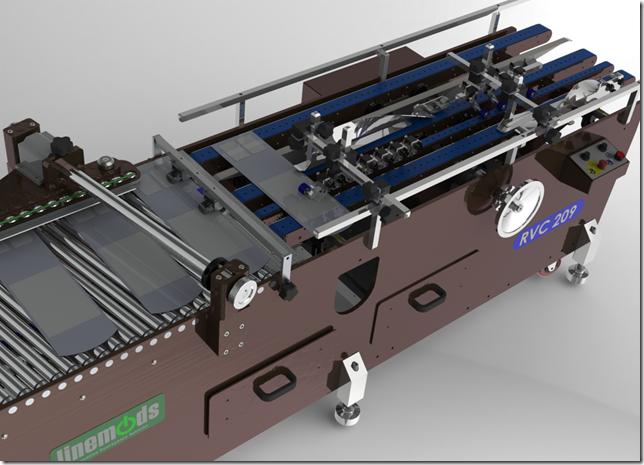

Picture 2

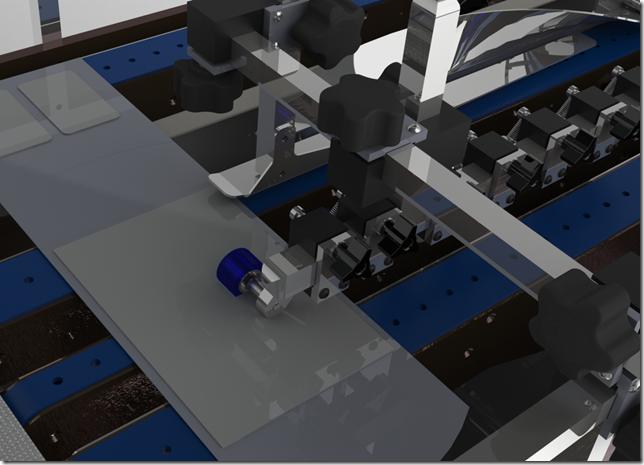

Picture 3



Plow Fold Attachment

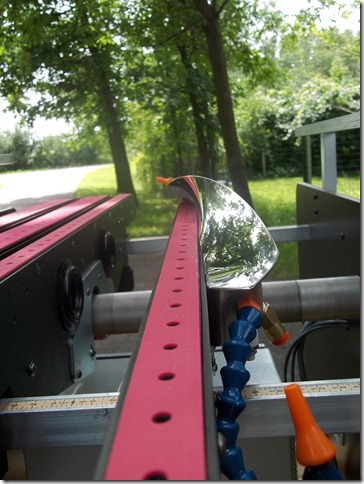

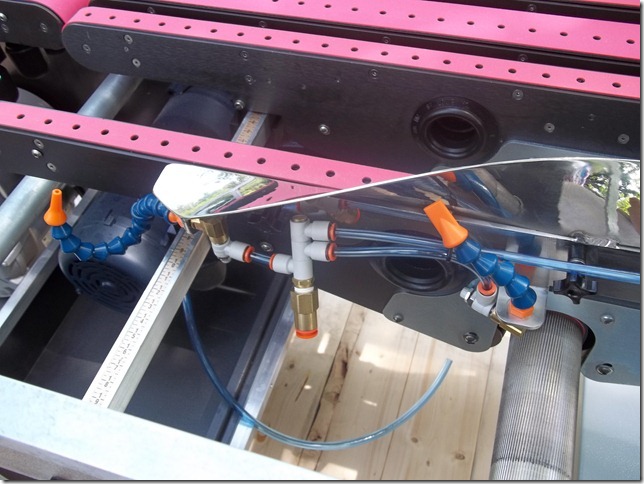

Plow Fold Picture 2



Bump Turn

















ITC 204

Innovative Turn Conveyor - Designed to accommodate your needs – In a moment go from “turn-over” to “pass through” without tools – Simple adjustment and maintenance – Ball bearing turntable head ensures smooth adjustment.



VMC 208

20" Capacity (5', 3')

VMC Vacuum Transport

  • Tool-Less Adjustments
  • Removable/Interchangeable Transports
  • Superb Performance Tracking Stability
  • High Power & Stall Proof
  • Automatic Vacuum Modulation
  • High Efficiency

Included:

  • Built-in full length side guides
  • Self storing vacuum bellows
  • Built-in scales
  • Automatic vacuum system
  • Handwheels at each section
  • Aluminum sideframes
  • Storage drawer
  • Sealed encoder locations
  • HD Leveling and caster system
  • Feed "Start" switch w/interlock circuit

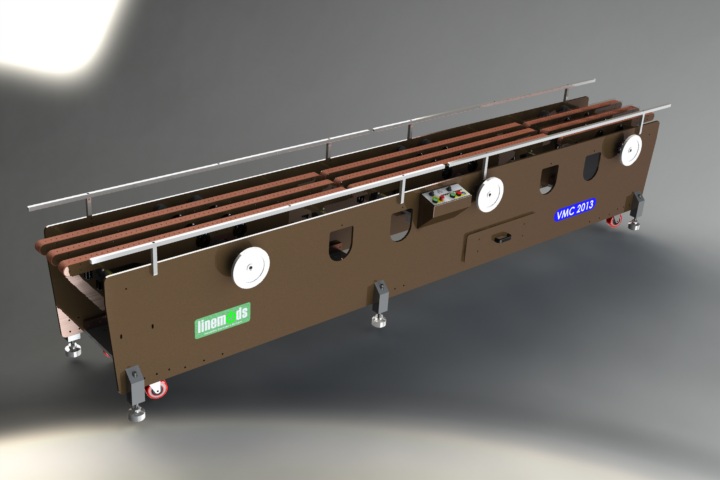

VMC 2013

VMC 2013 vacuum transport/finishing conveyor - Quality without compromise - from the innovative vacuum system to the anodized aluminum frames. Perform quick, easy, tool-less setups - Plow folding, scanning, ink jetting or placement. This system is our premier conveyance line with all the length and versatility needed for multiple finishing processes. VMC 2013 provides outstanding performance and operator versatility.

More Info





RAL 204

Right Angle Conveyor - Quality without compromise. All conveyors are designed to hold-up in the most demanding environments and offer features that provide outstanding versatility and longevity.



MTC 204

Bump/Turn Conveyor - Quality without compromise. Perform quick, easy, tool-less setups. All conveyors are designed to hold-up in the most demanding environments and offer features that provide outstanding versatility.



    6 Foot Flighted In Feed
